Wi-Fi 6 is the next generation of Wi-Fi technology and the HONOR Router 3 will be the first HONOR router to adopt this latest Wi-Fi standard which allows users to take advantage of lower latency, greater range and faster speeds.

The HONOR Route 3 is made up of the self-developed Gigahome Wi-Fi 6 chipset and several advanced technologies including OFDMA (orthogonal frequency division multiple access), 1024-QAM (1024-state quadrature amplitude modulation), and Target Wake Time (TWT) which facilitate faster connections and also help to extend the battery life of connected devices. The HONOR Router 3 features a WPA 3 security system to provide global users with an intuitive, stable and secure Wi-Fi 6 connection.

Get ready to experience a brand-new network experience with the HONOR Router 3!

SETTING UP YOUR DEVICE

Getting started

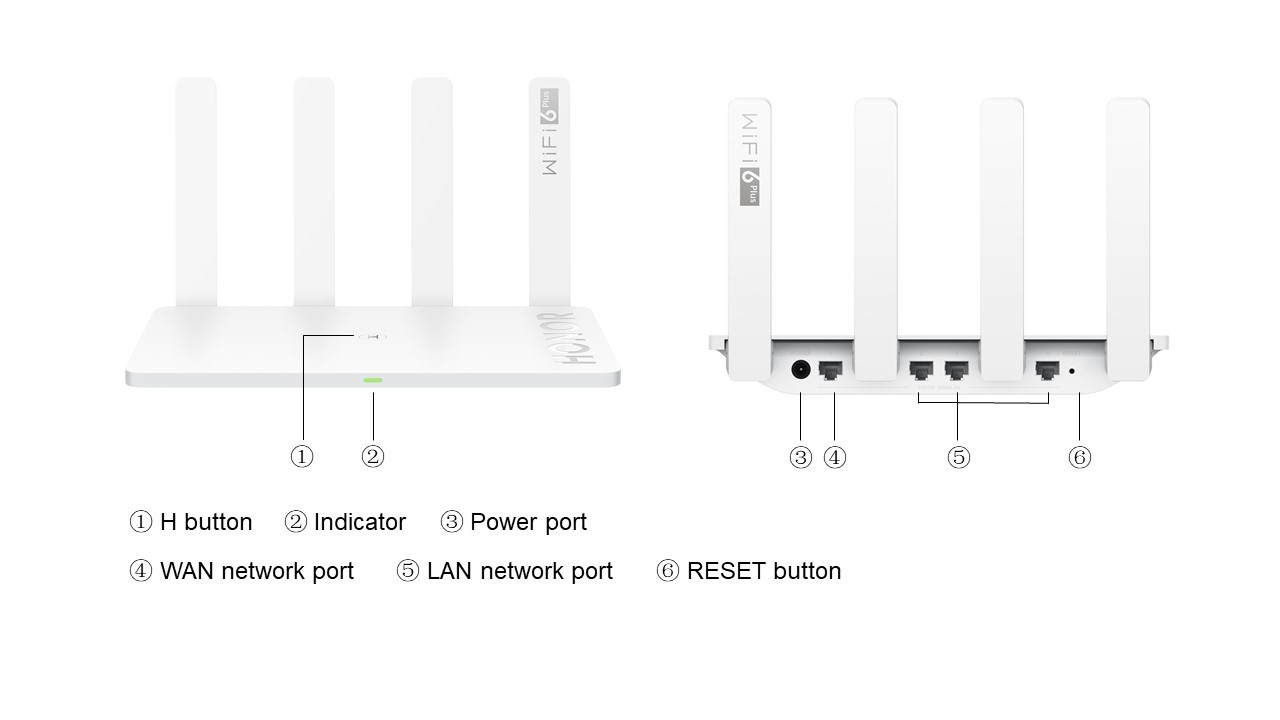

Step 1: Connecting the cables

· Erect all antennas upright to ensure optimized Wi-Fi signal

· If the indicator stays red, this indicates that the router is not connected to the Internet. Please refer to Step 2

Step 2: Configuring the network settings

· Connect your mobile phone or computer to the router’s Wi-Fi network (no password required). Check for the Wi-Fi name on the bottom of the new router.

· Open the browser, you will be automatically redirected. (if the page is not displayed automatically, please enter 192.168.3.1)

· Enter your broadband account and password. (if your Internet connection does not require an account and password, please skip to the next step)

· If you have forgotten your broadband account and password, contact your broadband carrier to obtain a broadband account and password.

· If you need to configure VLAN on your network, contact your broadband carrier to confirm the VLAN parameters, and enable the VLAN switch on the screen.

· Set a new Wi-Fi name, Wi-Fi password, and admin password for the new router.

· Enable Prioritize 5 GHz: Priority usage of 5GHz Wi-Fi band over 2.4 GHz band when signal strength is equal to increase connection speeds.

Step 3: Manage the router with our AI Life App

Scan the QR code to download and install the AI Life App on Google Play Store and HUAWEI AppGallery. You can use the app to manage your router.

Indicator

Steady green

Connected to the network

Steady red

Not connected to the network

· Loose cable or connect error. Please check the cable.

· Broadband network error. Please contact your broadband carrier

Flashing

The router has detected a pairable device.

When other HUAWEI/HONOR routers (with H or HI button) are detected, the indicator on the HONOR Router 3 will flash.

When this happens, press the HONOR Router 3’s H button. The indicator should flash quickly, indicating that the pairable device is connecting to the HONOR Router 3. The connection process is complete when the indicator stops flashing.

· If you touched the H button by accident, wait for 2 minutes till the indicator returns to normal.

· The H button also features WPS functionality.

KEY FEATURES

Based on the latest Wi-Fi 6 standards and supported by the cutting-edge Gigahome Wi-Fi 6 chipset and multiple advanced technologies, the HONOR Router 3 is capable of offering “Wi-Fi 6 Plus” network speeds as well as enhanced wall-penetration capabilities for users to enjoy super connectivity at home.

Key Features to Experience
1. Minimalist design and mesh network	· Color: white · Dimensions: 225 mm x 159.2 mm x 39.7 mm · Network Port: 1 WAN port and 3 LAN ports, supporting auto speed adaptation between 100Mbps and 1000Mbps · One-click on “H” button to pair with another Honor router 3 to achieve wider network coverage
2. Wi-Fi 6 Plus	Wi-Fi 6 standard features · 3000Mbps ultra-fast network speed · OFDMA Technology · Target Wake Time HONOR Router 3 exclusive features · Larger Bandwidth with 160 MHz · 60% faster network speed on compatible HONOR Wi-Fi 5 devices · Dynamic Narrow Bandwidth Technology
3. AI Life App	Smarter and better manage our network · Parental Control · Smart Diagnostic · Devices Management
