Hi guys

How much do you know about charging?

Let's run a quick test: Check the following questions to see if you get the answer right.

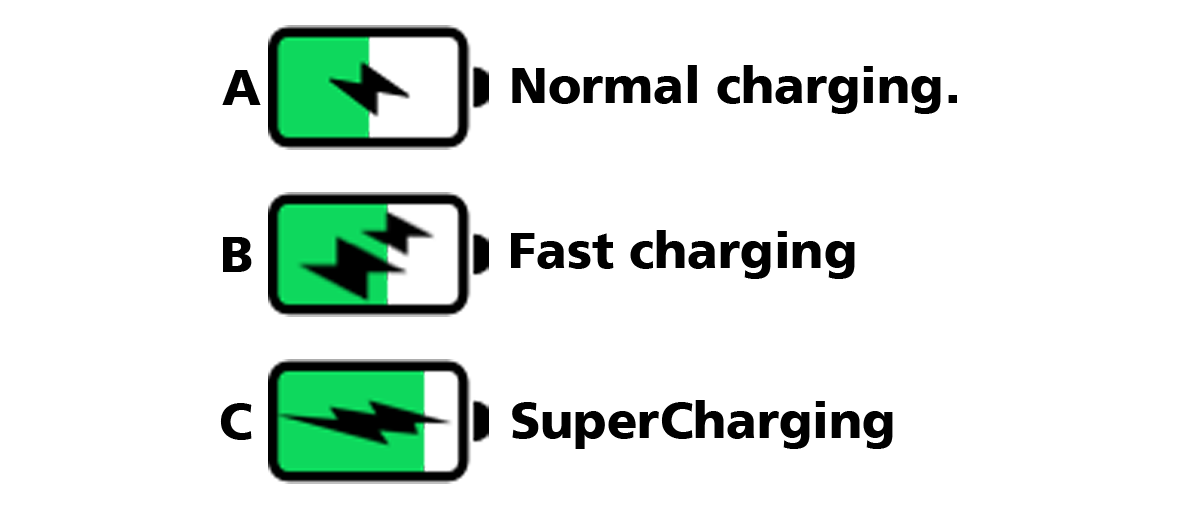

1. Which icon is for SuperCharging mode?

A. pspanspanstrongHi-guysstrongspanspanppspanstrongHow-much-do-you-know This is Normal charging.

B. pspanspanstrongHi-guysstrongspanspanppspanstrongHow-much-do-you-know This is Fast charging.

C. pspanspanstrongHi-guysstrongspanspanppspanstrongHow-much-do-you-know Right. It's SuperCharging.

pspanspanstrongHi-guysstrongspanspanppspanstrongHow-much-do-you-know

* The battery icon of EMUI 8.0 and above will turn gray when charging.

2. If a smart phone supports maximum 10V/4A SuperCharge, what's its maximum charging power?

maximum charging power 40W

3. Can I get SuperCharging with a 40W adapter?

Not really, the cable and the phone should also support SuperCharge.

If the phone supports SuperCharge, with an appropriate cable, SuperCharge can be achieved with this adapter.

By the way, an over-current charger may damage the phone battery.

The following tips will show you how to charge your phone quickly without shortening battery life.

pspanspanstrongHi-guysstrongspanspanppspanstrongHow-much-do-you-know

Three factors affecting charging effects

Maximum charging power supported by smart phone
Charging power of adapter

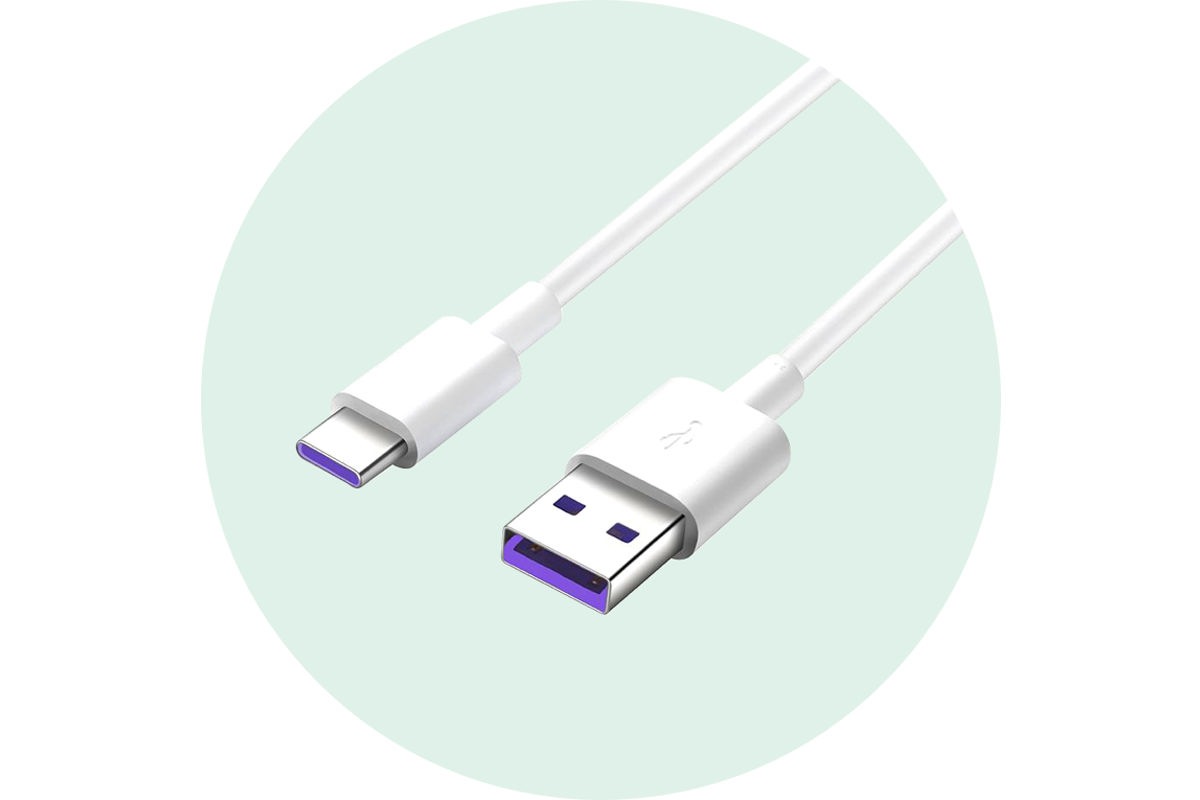

Transmission current of cable

How to know these three factors?

You can find them on the label of HONOR standard power adapter and cable.

For example, the output of HONOR 10X LITE standard chargers are "5V/2A, 9V/2A or 10V/2.25A". Therefore, the charging power and mode are 5V×2A=10W Normal charging, 9V×2A=18W Fast charging and 10V×2.25A=22.5W SuperCharging respectively. Obviously, the maximum power is 22.5W.

*They can also be found in the product specifications on user manual and VMALL.

How to select appropriate charging accessories?

You should select the adapter and cable based on the maximum charging power and current of your phone.

At present, HONOR & HUAWEI smart phones support these charging power:

10W Normal charge
22.5W SuperCharge
18W Fast charge40W SuperCharge
20W Fast charge
40W SuperCharge
55W SuperCharge

Choose a 40W charger if your phone supports a maximum charging power of 40W.

If the maximum charging current of your phone is 4A, then select a 4A data cable. Meanwhile, the maximum current supported by the cable should be ≥ the output current of the adapter.
